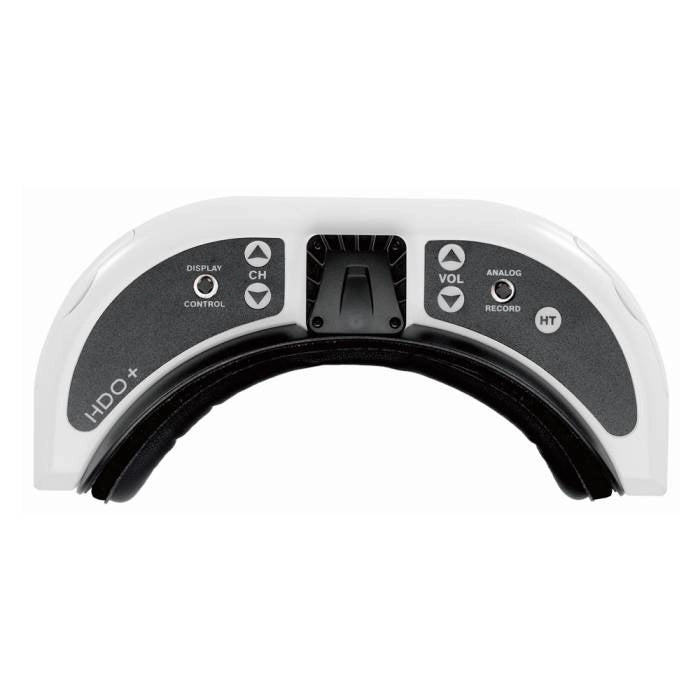

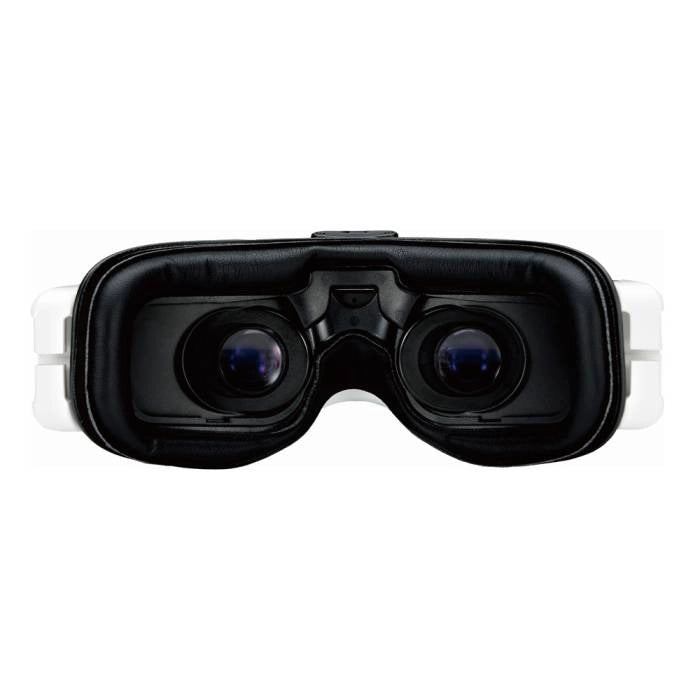

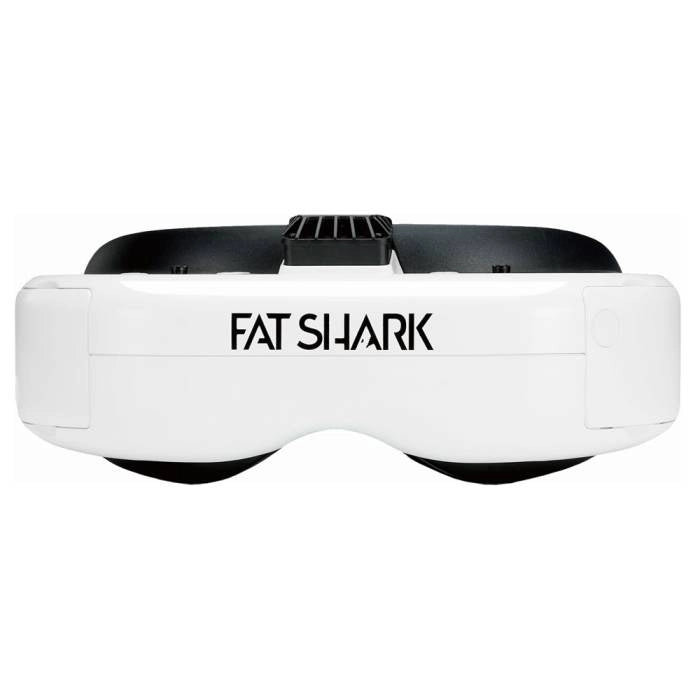

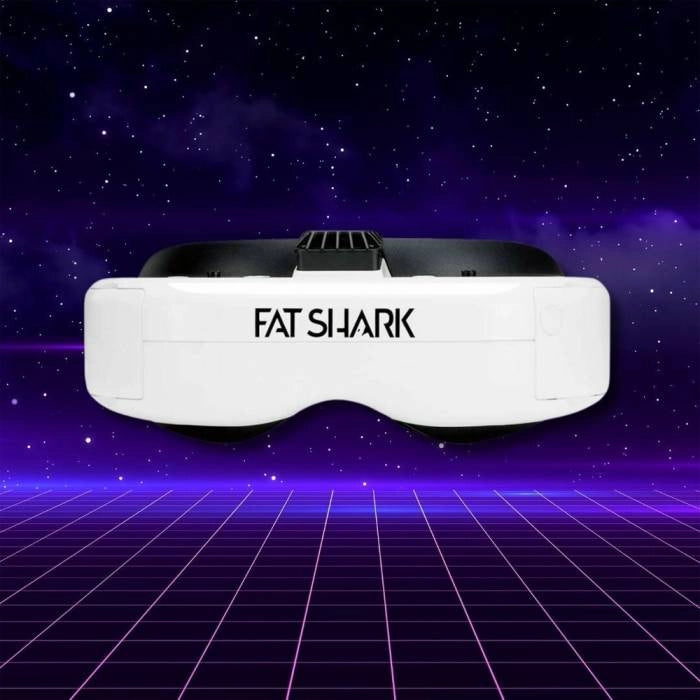

HDO+

The HDO+ uses big 1920 x 1080 OLED panels to provide a dramatically improved image with a 50-degree field of view. Display customization is now possible using a new OSD with expanded controls. The HDO+ can be further personalized with adjustable focus, adjustable IPD, adjustable faceplate curvature, selectable image ratio, and a configurable power button. The HDO+ is the perfect headset for an experienced pilot looking for the best flight experience.

Screen: SeeYA 0.49″ OLED X2
Resolution: 1920 x 1080
Field of View (FOV): 50
Interpupillary Distance (IPD): 54 - 74 mm adjustable
Focus Adjustment: +2 / -6 adjustable

Display and Video

Aspect Ratio:

• NTSC/PAL Auto Switching
• AV: 4:3 / 16:9
• HDMI: 16:9

Interfaces

• DC In
• Audio Out
• AV In/Out
• Mini HDMI In
• RX On/Off
• MicroSD (up to 32GB supported)

Features

• OSD Language: English
• Power Supply: 7 - 25V external input (supports 2S - 5S input)
• Power Consumption:
  • 420mA @ 7.5V input (no RX module)
  • 770mA @ 7.5V input (with Rapid FIRE module)
• DVR: 30 fps, AVI format
• HT Function: Not available

Dimensions and Weight

• Dimensions: 169.2 x 80 x 45.5 mm (semi-finished product)
• Weight:
  • Semi-finished product (with RX module): 242.3g
  • Semi-finished product (without RX module): 230g
  • Finished product (with accessories): 563.3g / 551g (without RX module)

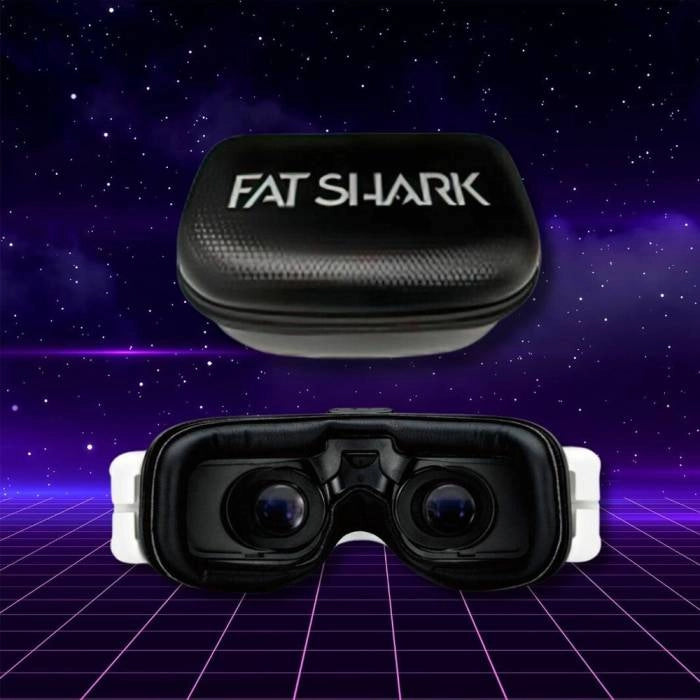

Accessories Included

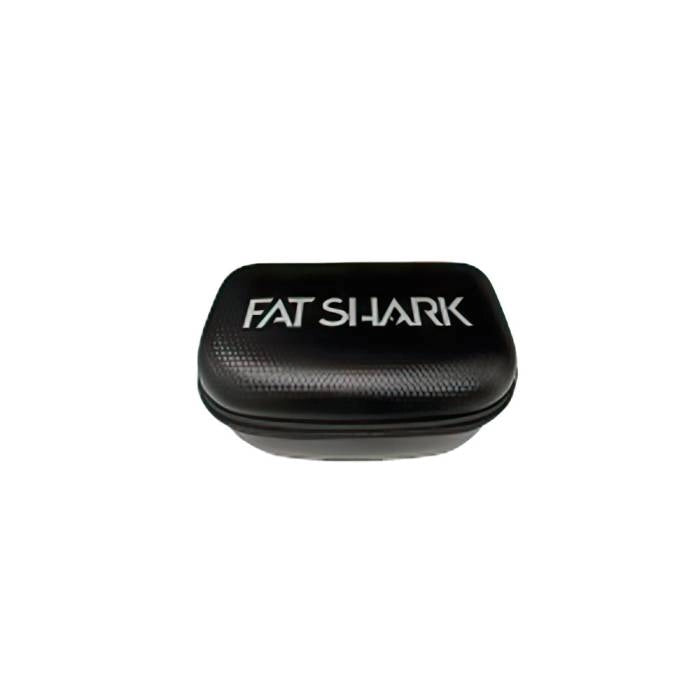

• Carrying Case
• XT60 Power Cable
• Dominator HDO+ Headset
• Lens Cleaning Cloth
